不锈钢软管接头

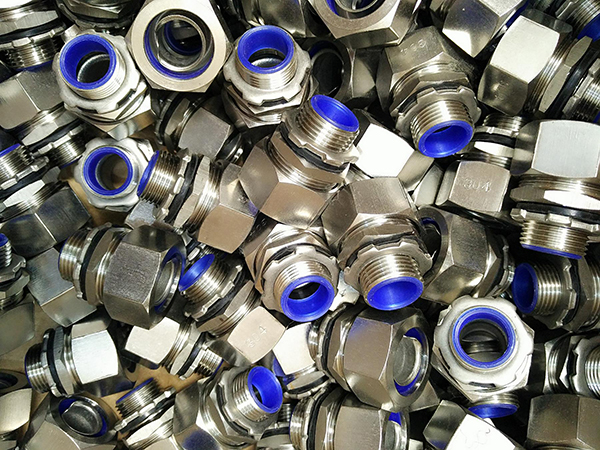

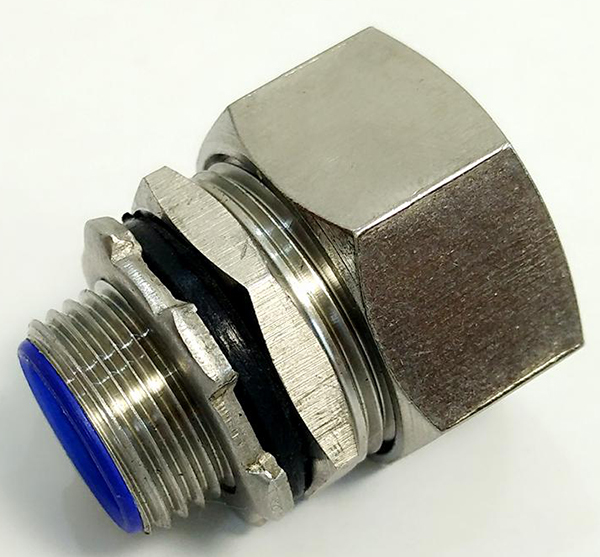

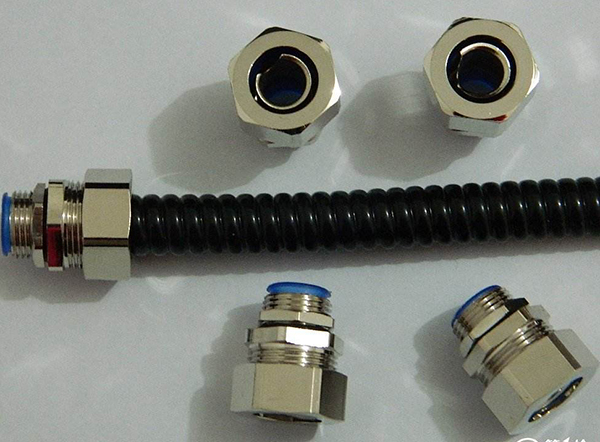

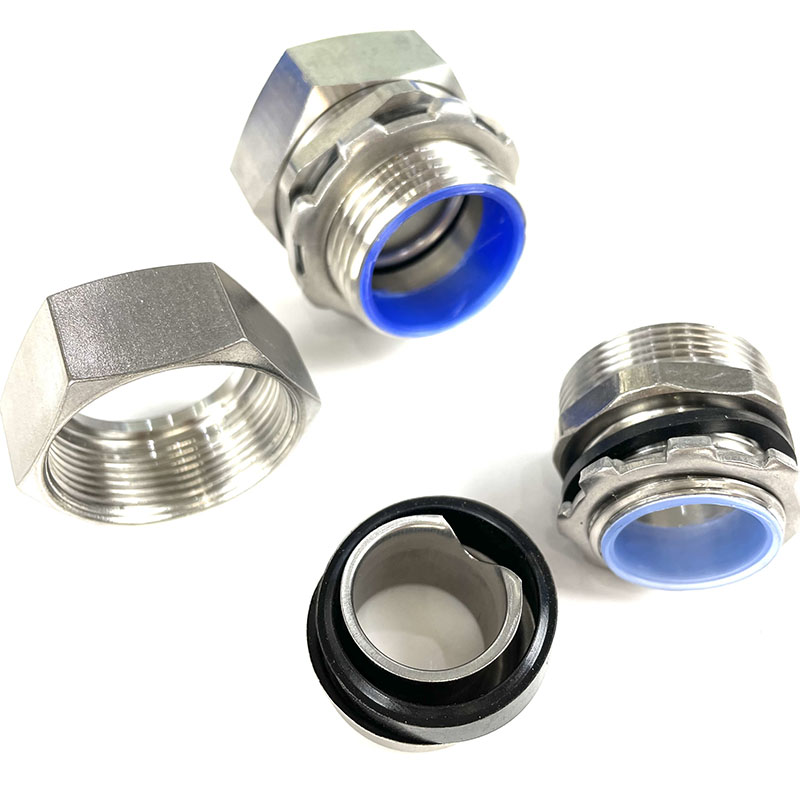

YL-SPJ不锈钢端式接头采用优质304或者316L不锈钢加工而成，产品外型美观、结构紧密、无气孔、强度高，软管与配电箱等终端连接，有密封性好，防震、防腐、防水、防尘等优点。此金属管接头规格大小，可按设备、箱体、软管口径、螺纹任意变动。一端连接软管，一端外螺纹连接开关箱、电机、桥架等。订货请注明软管规格及螺纹尺寸，例：YL-SPJ-15mm-G1/2”，一端接Φ15内径软管，另一端G1/2”外螺纹。
Yiliang stainless steel liquid tight conduit and stainless steel liquid tight conduit connector are relied upon by leading petrochemical organisations for protection of their electrical and data cables in Corrosion Environments.In addition to supplying high-quality flexible conduit and fittings manufactured to the regular industry installations or to a customised specification designed to meet an application’s particular requirements, we offer project solutions that include technical support from conduit and fittings selection, design to installation recommendation and all of the logistical aspects of delivering our cables to remote international locations. This has made yiliang flexible conduit and fittings the choice for major oil companies.

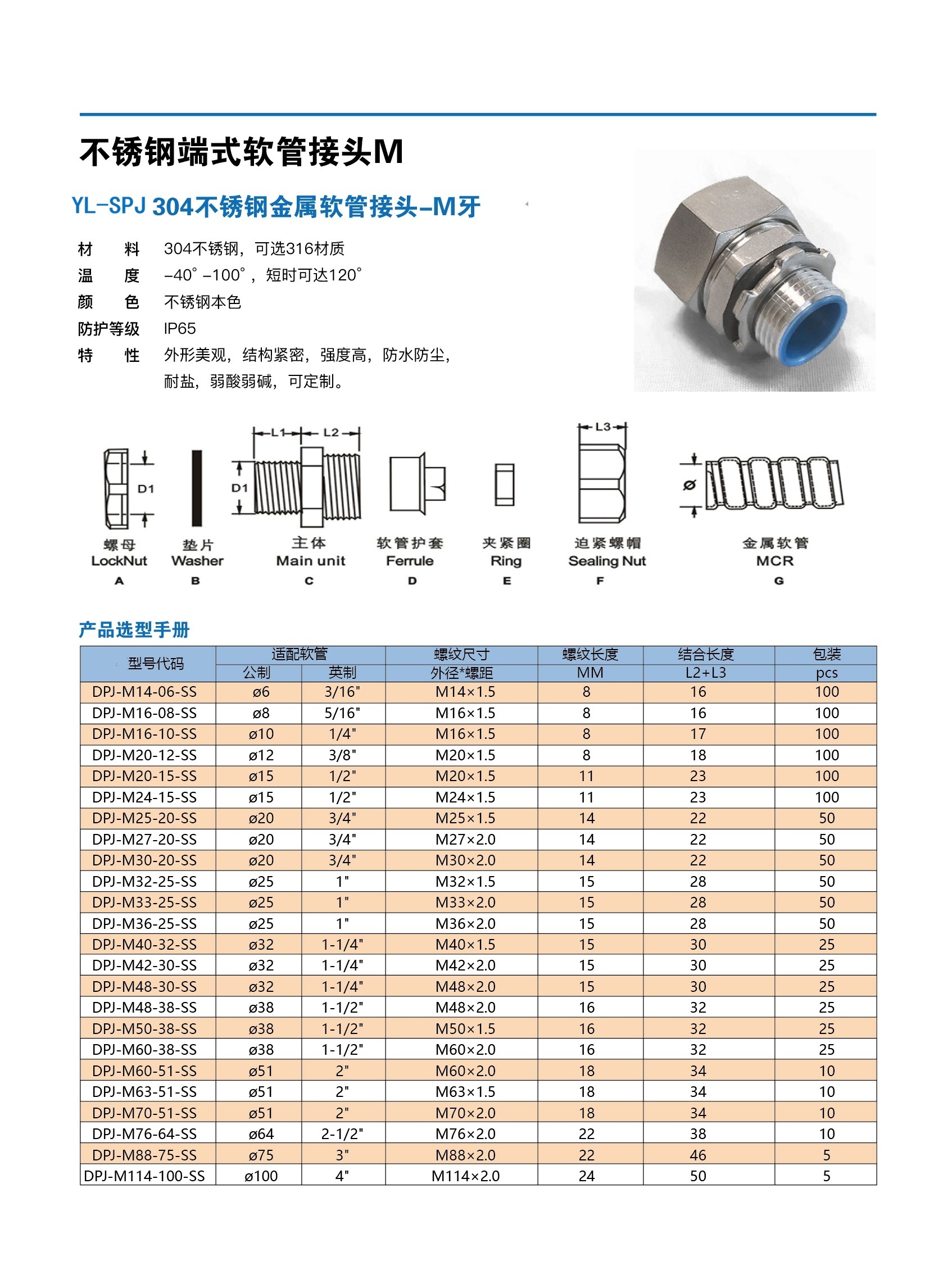

| 规格标注 | 英制螺纹厚 钢螺纹 |
薄钢螺纹 | 公制螺纹 | 德制 | |
| 公制 | 英制 | ||||
| φ6 | G1/4″ | C13 | M14×1.5 | PG7 | |
| φ8 | 5/16″ | G3/8″ | C15 | M16×1.5 | PG9 |
| φ10 | 1/4″ | G3/8″ | C15 | M16×1.5 | PG9 |
| φ12(13) | 3/8″ | G3/8″ | C19 | M20×1.5 | PG11/PG13.5 |
| φ15(16) | 1/2″ | G1/2″ | C19 | M20×1.5/M24×1.5 | PG1.35/PG16 |
| φ20(19) | 3/4″ | G3/4″ | C25 | M27×2/M30×2 | PG21 |
| φ25 | 1″ | G1″ | C31 | M33×2/M36×2 | PG29 |
| φ32 | 1/1/4″ | G1/1/4″ | C39 | M42×2/M48×2 | PG29 |
| φ38(40) | 1/1/2″ | G1/1/2″ | C51 | M48×2/M60×2 | PG36/PG42 |
| φ51(50) | 2″ | G2″ | C63 | M60×2/M72×2 | PG48 |
| φ64(70) | 2/1/2″ | G2/1/2″ | C75 | M76×2 | |
| φ75(80) | 3″ | G3″ | M88×2 | ||
| φ100 | 4″ | G4″ | M114×2 | ||
| φ125 | 5″ | G5″ | M140×2 | ||
| φ150 | 6″ | G6″ | M164×2 | ||
